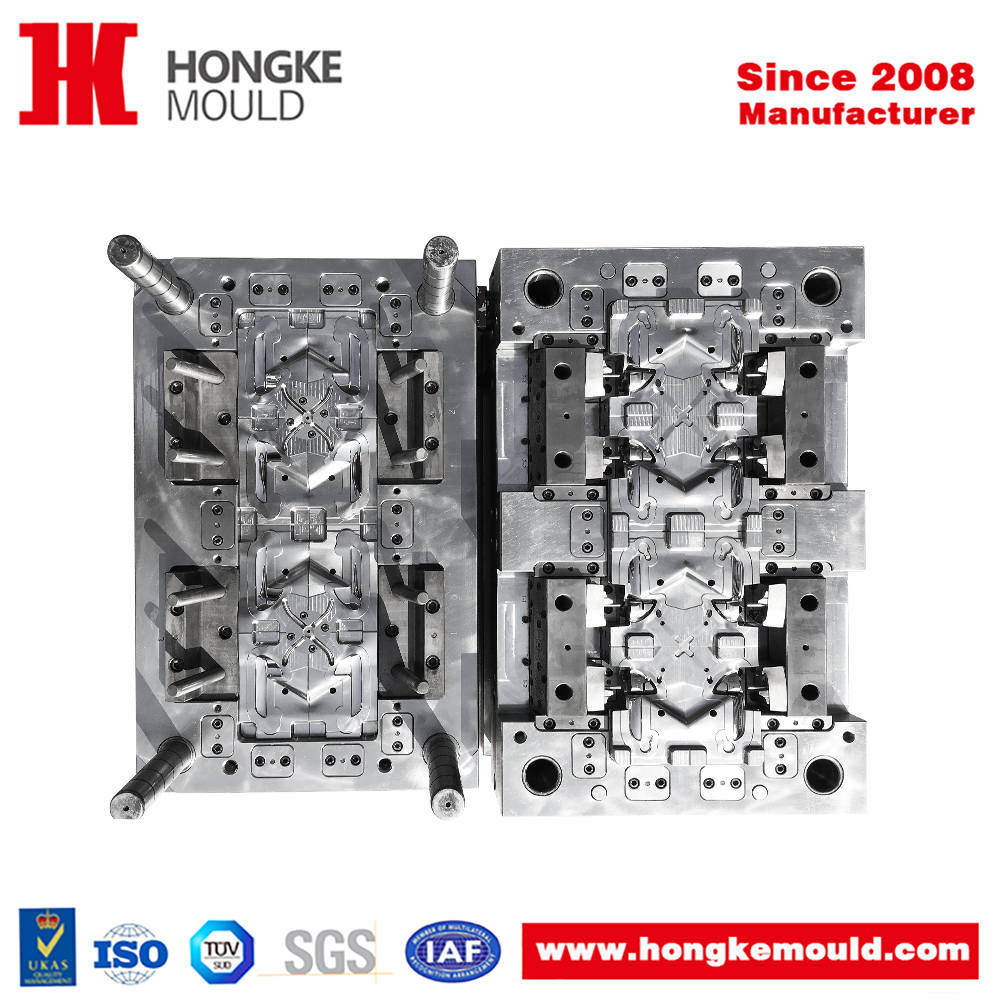

This is a precision injection mold designed to produce automotive interior door handles. As a functional and safety-related component, the door handle needs to offer both structural strength and a comfortable grip, while also delivering a premium surface finish. In real-world use, it has to endure hundreds of thousands of open-close cycles over the life of the vehicle, all while maintaining consistent dimensional accuracy and cosmetic quality. That puts a lot of pressure on the mold.
The biggest challenge with this mold is the part geometry itself. The door handle includes multiple undercuts, deep ribs, reinforced mounting points, and snap-fit features. These can't be achieved with a simple straight-pull mold. Instead, we need several precision sliders and lifters working together in perfect sync. If any of these moving parts are even slightly off, we risk flash, sticking, or parts that simply don't meet spec. On top of that, automotive door handles are typically Class-A surfaces, which means we have to keep weld lines, sink marks, flow marks, and gate vestiges to an absolute minimum, while maintaining a uniform gloss and texture across the entire part. Getting the filling balanced and shrinkage controlled across a part this large and complex requires a well-thought-out gating system, efficient cooling, and tight process control.
Another big consideration is durability. Automotive programs usually call for molds that can run hundreds of thousands, sometimes millions of shots with minimal downtime. Every assembly feature—especially mounting clips, screw bosses, and pivot points—has to hold tight tolerances, because any deviation there affects how the final part fits and performs in the vehicle. At the same time, all those sliders and lifters need to keep moving smoothly over long production runs without wearing out prematurely. That means high-precision machining, quality steel, and careful fitting right from the start.
That said, this is exactly the kind of challenge we're used to. We've been doing automotive injection molds for years. Before we cut any steel, we run thorough mold flow analysis to figure out the best gate locations, fill balance, cooling layout, and warpage control. From there, it's all about execution—high-speed CNC machining, EDM, precision grinding, and hands-on assembly work to make sure every slider and lifter moves the way it should. We're particular about steel selection and we inspect at every stage. The result is a mold that holds its dimensions, runs consistently, delivers good surface quality, and stands up to high-volume production—exactly what the automotive industry demands.
